New grill block mounting method

Last year, my grill block on the Prius worked pretty good. However, on a windy day towards spring I did have one of the thumb screws back off and I ended up loosing it and kinking the coroplast. So, I thought up a new way to mount the grill block that I think makes a lot of sense and is incredibly easy to do.

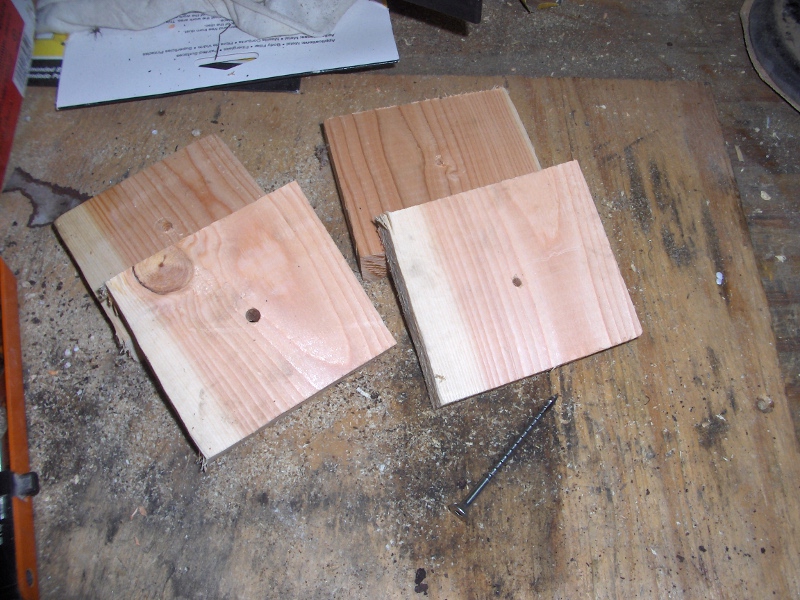

I started out with some left over 1x4s I had laying around. These scraps worked perfectly for the project. I drilled a clearance hole for a 2.5" wood screw in two of the blocks and a pilot hole in the other two.

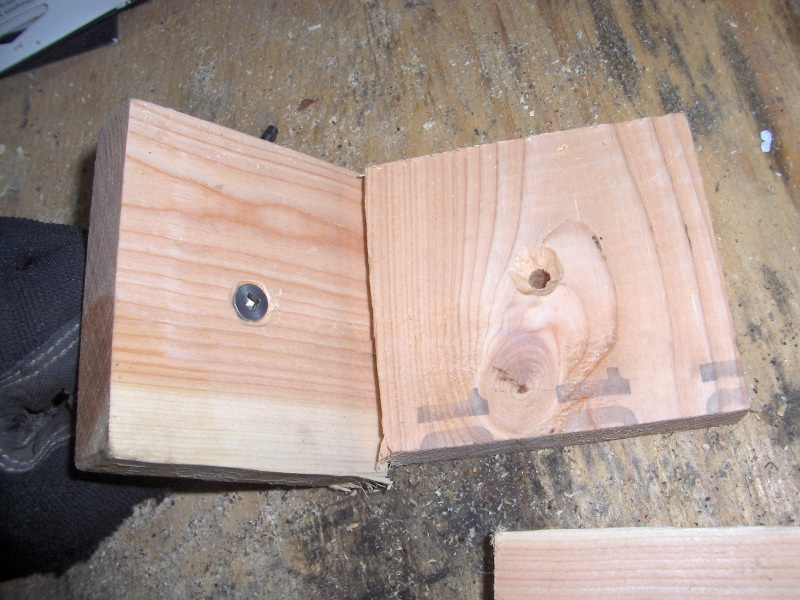

I then drilled a countersink in the blocks with the clearance hole so the stainless deck screw I was going to use would sit below flush.

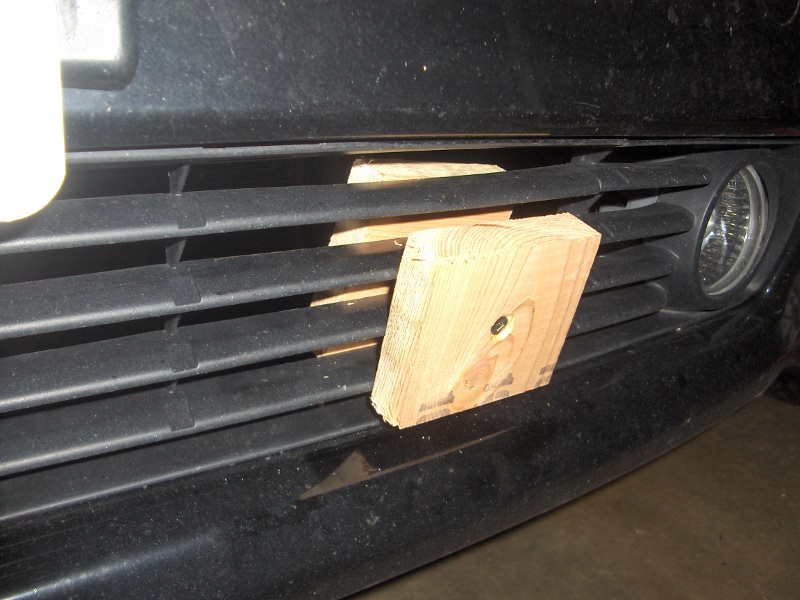

Next, I stuck the block with the pilot hole behind the grill and screwed them together with the block with the clearance hole on the outside of the grill.





And then I mounted the other. Now, the blocks provide us a place to screw the grill block to. It also positions the grill block much more flush with the bumper instead of being inset like most grills are. This should improve aero a little bit. Also, its very easy to compensate for different grill depths by using different thickness outer blocks.





Lastly, I held my grill block up to the blocks, drilled holes, and used button head screws and fender washers to hold it on. It is much more sturdy than my last method of attaching the grill block and it sits almost as flush. A little tweaking will fix that though.


__________________
Current project: A better alternator delete
  Reply With Quote
The Following 3 Users Say Thank You to Daox For This Useful Post:
alohaspirit (12-01-2010), mpg_numbers_guy (02-18-2018), SoobieOut (12-02-2010)
Alt Today
Popular topics

Other popular topics in this forum...


Old 12-01-2010, 10:01 PM   #2 (permalink)
Grasshopper

alohaspirit's Avatar

Join Date: Feb 2009
Location: Hawaii
Posts: 964

Makai - '01 Toyota Echo 4D Auto
90 day: 34.45 mpg (US)

New Galaxy - '07 Toyota Prius
90 day: 42.15 mpg (US)
Thanks: 25
Thanked 30 Times in 25 Posts
i like the idea

is that black coroplast?
__________________
Past Present Future?
  Reply With Quote
Old 12-01-2010, 10:37 PM   #3 (permalink)
EcoModding Apprentice

Join Date: Oct 2010
Location: South Of Chicago
Posts: 127

Aveo - '08 Chevolet Aveo LS
Thanks: 6
Thanked 1 Time in 1 Post
You blocked lower and kept upper open?
  Reply With Quote
Old 12-02-2010, 06:41 AM   #4 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,203

CM400E - '81 Honda CM400E
90 day: 51.49 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)

Daox's Volt - '13 Chevrolet Volt
Thanks: 2,501
Thanked 2,585 Times in 1,553 Posts
Quote:
Originally Posted by alohaspirit View Post
i like the idea

is that black coroplast?
Yup, its really dusty, but it is black coroplast.



Quote:
You blocked lower and kept upper open?
I have yet to block the upper grill. It'll be done eventually.
__________________
Current project: A better alternator delete
  Reply With Quote
Old 12-02-2010, 10:37 AM   #5 (permalink)
aero guerrilla

Piwoslaw's Avatar

Join Date: Oct 2008
Location: Warsaw, Poland
Posts: 3,691

Svietlana II - '13 Peugeot 308SW e-HDI 6sp
90 day: 58.1 mpg (US)
Thanks: 1,269
Thanked 721 Times in 458 Posts
Quote:
Originally Posted by Angelus359 View Post
You blocked lower and kept upper open?
That's just to keep the snow out
__________________
e·co·mod·ding: the art of turning vehicles into what they should be

What matters is where you're going, not how fast.

"... we humans tend to screw up everything that's good enough as it is...or everything that we're attracted to, we love to go and defile it." - Chris Cornell


[Old] Piwoslaw's Peugeot 307sw modding thread
  Reply With Quote
Old 12-02-2010, 03:25 PM   #6 (permalink)
...beats walking...

Join Date: Jul 2009
Location: .
Posts: 6,190
Thanks: 179
Thanked 1,525 Times in 1,126 Posts
...I found some "heavy-duty" Velcro™ squares that seem to be holding up well (so far) at holding things in-place behind the grill...in the space between the bumper-fascia and the radiator.
  Reply With Quote
Old 12-03-2010, 08:21 AM   #7 (permalink)
Administrator

Daox's Avatar

Join Date: Dec 2007
Location: Germantown, WI
Posts: 11,203

CM400E - '81 Honda CM400E
90 day: 51.49 mpg (US)

Daox's Grey Prius - '04 Toyota Prius
Team Toyota
90 day: 49.53 mpg (US)

Daox's Insight - '00 Honda Insight
90 day: 64.33 mpg (US)

Swarthy - '14 Mitsubishi Mirage DE
Mitsubishi
90 day: 56.69 mpg (US)

Daox's Volt - '13 Chevrolet Volt
Thanks: 2,501
Thanked 2,585 Times in 1,553 Posts
I haven't been able to drive the car since doing this. But, the wife reports back that the car is warming up and maintaining temperature much better now. Heat can be a real problem for her in the winter since she transports plants and they need to be warm.
__________________
Current project: A better alternator delete
  Reply With Quote
The Following User Says Thank You to Daox For This Useful Post:
wyatt (12-03-2010)
Old 12-03-2010, 11:47 AM   #8 (permalink)
EcoModder

Join Date: Jul 2008
Location: North Central Alabama
Posts: 572

Big Salsa - '04 Toyota Sienna LE

Silver - '10 Toyota Prius III
Thanks: 110
Thanked 123 Times in 71 Posts
Nice. I am going to have to install something again this year on our Prius. Last year it was clear acrylic and it worked well. I would use it again, but the acrylic was so thin that rocks punched holes right through it. If it didn't get thrown out, I could use it as a template for this years... I had used black electrical tape around the perimeter to prevent cracking/breakage along the edges and black zip ties to attach. it was kind of a pain to get done, but really didn't take that long. We had good heat even driving back to Alabama from Wisconsin in -6degF weather at night! Since we had nothing to compare against, I didn't know if it made a difference, so thanks for that tidbit!
__________________
  Reply With Quote
Old 12-03-2010, 12:36 PM   #9 (permalink)
Wiki Mod

Weather Spotter's Avatar

Join Date: Nov 2009
Location: Midland MI, USA
Posts: 2,042

Max - '14 Ford C-Max SEL
Thanks: 228
Thanked 304 Times in 210 Posts
Looks like a nice set up. If I had to make one for my car I think I would use the same setup.

thread added to the wiki section on grill blocks.
__________________
  Reply With Quote
Old 12-03-2010, 09:04 PM   #10 (permalink)
OCD Master EcoModder

brucepick's Avatar

Join Date: Dec 2007
Location: Eastern CT, USA
Posts: 1,933

Outasight - '00 Honda Insight
Team Honda
Gen-1 Insights
90 day: 54.18 mpg (US)
Thanks: 429
Thanked 391 Times in 261 Posts
Nice job! Mine is McGyver'ed: Lengths of pipe insulation built up into chunks with duct tape, jammed into the grill slots. Not nearly as nice as yours.

__________________
Coast long and prosper.
Driving '00 Honda Insight, acquired Feb 2016.


  Reply With Quote
